China Wholesale Infinite Galvo Laser Marking Machine Factories Quotes - 2000W Laser Welding Machine Handheld Fiber – MimoWork Laser Detail:
(handheld laser welding machine for sale, portable laser welder)
Technical Data
|
Laser power |
2000W |
|
Working mode |
Continuous or modulate |
|
Laser wavelength |
1064NM |
|
Beam quality |
M2<1.5 |
|
Standard output laser power |
±2% |
|
Power supply |
380V±10% 3P+PE |
|
General Power |
≤10KW |
|
Cooling system |
Industrial Water Chiller |
|
Fiber length |
5M-10M Customizable |
|
Temperature range of working environment |
15~35 ℃ |
|
Humidity range of working environment |
< 70%No condensation |
|
Welding thickness |
Depending on your material |
|
Weld seam requirements |
<0.2mm |
|
Welding speed |
0~120 mm/s |
|
Applicable materials |
Carbon steel, stainless steel, galvanized sheet, etc |
Superiority of Fiber Laser Welder Machine
◼ Premium Welding Quality
✔ The fiber laser source has a stable and excellent laser beam quality to accomplish a high-quality laser welding effect. A smooth and flat welding surface is accessible.
✔ High power density contributes to keyhole laser welding reaching a high depth-to-width ratio. Besides the heat conduction surface welding is also no problem.
✔ High precision and powerful heat can instantly melt or vaporize the metal in the right position, forming a perfect welding joint and no post-polishment.
◼ High-Efficiency Production
✔ The fiber laser welder machine stands out from traditional welding methods due to its fast welding speed of 2~10 times faster than argon arc welding.
✔ Less heat affection area means less and no post-treatment, saving operation steps and times.
✔ Easy and flexible operation enables high-capacity production.
◼ Long Service Life
✔ Stable and reliable fiber laser source has a long lifespan of an average of 100,000 working hours.
✔ Easy laser welder structure means less maintenance.
✔ Water chiller helps remove the heat to ensure the laser welder functions well.
◼ Wide Compatibility
✔ Multiple materials regardless of fine metal, alloy or dissimilar metal can all be greatly laser welded.
✔ Suitable for overlapping welding, internal and external fillet welding, irregular shape welding, etc.
✔ Continuous and modulate laser modes are adjustable to meet different demands for welding thickness.
(2000w handheld laser welding machine for metal)
Laser Welder Structure
Fiber Laser Source
Small size but stable performance. Premium laser beam quality and stable energy output make it possible for safe and constant high-quality laser welding. Precise fiber laser beam contributes to fine welding in automotive and electronic component fields. And the fiber laser source has a long lifespan and needs less maintenance.
Fiber Cable Transmission
The laser handheld welding machine delivers the fiber laser beam by the fiber cable of 5-10 meters, allowing long-distance transmission and flexible movability. Coordinated with the handheld laser welding gun, you can freely adjust the location and angles of the workpiece to be welded. For some special demands, the fiber cable length can be customized for your convenient production.
Laser Welding Gun
The handheld laser welding gun meets laser welding at various positions and angles. You can process all kinds of welding shapes by hand-controlling laser welding tracks. Such as circle, semi-circle, triangle, oval, line, and dot laser welding shapes. Different laser welding nozzles are optional according to materials, welding methods, and welding angles.
Constant Temperature Water Chiller
The water chiller is an important component for the fiber laser welder machine which takes on the necessary function of temperature controlling for normal machine running. With a water cooling system, the extra heat from laser heat-dissipating components is removed to get back to the balanced condition. The water chiller extends the service life of the handheld laser welder and ensures safe production.

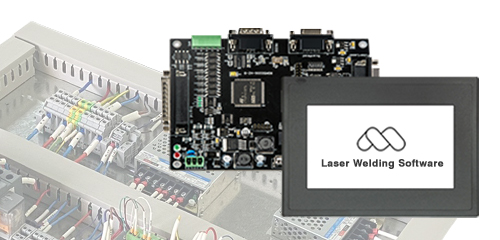

Control System
Laser welder control system provides a stable electricity supply and precise data transmission, ensuring the constantly high quality and high speed of laser welding.
Suitable high-power-density laser welding keyhole, the fiber 2000W laser welder helps you with deep penetration welding with firm welding quality !
⇨ Make a profit from it now
Video Display – Handheld Laser Welder
Quick Glance at the Handheld Laser Welder
Quick Glance at the Handheld Laser Welder
Various Methods of Handheld Laser Welding
Corner Joint Welding (angle welding or fillet welding)
Tailored Blank Welding
Stitch Welding
<a href="https://www.mimowork.com/handheld-laser-welder-machine/" title=" >> Learn more about handheld laser welding” target=”_blank”>
>> Learn more about handheld laser welding
Four Working Modes for Laser Welder
(Depending on your welding method and material)
Continuous Mode
Dot Mode
Pulsed Mode
QCW Mode
▶ Send your materials and demands to us
MimoWork will help you with material testing and a technology guide !
Related Laser Welding Machine
Single-side Weld Thickness for Different Power
| 500W | 1000W | 1500W | 2000W | |
| Aluminum | ✘ | 1.2mm | 1.5mm | 2.5mm |
| Stainless Steel | 0.5mm | 1.5mm | 2.0mm | 3.0mm |
| Carbon Steel | 0.5mm | 1.5mm | 2.0mm | 3.0mm |
| Galvanized Sheet | 0.8mm | 1.2mm | 1.5mm | 2.5mm |
Any questions about the fiber laser welding process and handheld laser welder cost
