Laser Machine Fume Extractor

Why You Need a Fume Extractor for Laser Machine?

Melting the surface of the material to achieve the perfect result, CO2 laser machine may generate lingering gases, pungent odor, and airborne residues. An effective laser fume extractor can help one puzzle out the bothersome dust and fumes while minimizing disruption to production.

Laser cleaning will sublimate the coated attachment from the base metal, it's imperative to invest in a fume extractor to filtrate the smokes. Although laser welding generates much less fume than any other welding process, you can also consider purchasing a fume extractor for a better operating environment.



filtration-process

Customized Laser Fume Extraction Systems

mimowork-laser-machine

When you invest in a CO2 laser machine from MimoWork, standard laser exhaust fans will be configured at the side or bottom of the laser cutter. Through the connection of the air ducts, the waste gas can be discharged to the outside. To protect the environment, exhausting gas indoors directly and cleaning the waste gas by the laser cutter filtration to protect the environment and meet the requirements of relevant government regulations, or many others, MimoWork can provide further solutions about laser cutter fume extractor.



To satisfy laser cutting, engraving, welding and cleaning particular materials, laser machines with various working table sizes need to equip distinct models of Fiber and CO2 laser fume extractors to remove the dust.

For instance, acrylic laser cutting produces an extremely pungent smell, and a special treatment of activated carbon laser cut filter is required when assembling a suitable air purifier. For composite material laser cutting such as fiberglass or rust removal, how to capture all the clouds of dust and prevent the dispersal of harmful substances points out the key to designing efficient laser fume extraction and filtration systems.

Besides, MimoWork’s research on numerous materials and dust (dry, oily, sticky) generated by laser cutting and laser engraving can ensure that our laser fume extraction solutions are the best available on the laser processing market.



fume-extractor-01

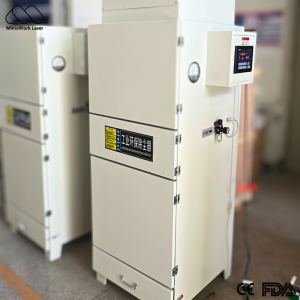

Features and Highlights of MimoWork Laser Fume Extractors

laser-fume-extractor

• Small machine size, low operating noise, easy to move around

• The high efficient brushless fan ensures strong suction

• The air volume can be adjusted manually or remotely

• The LCD screen displays the air volume and machine power

• Safe and stable operation with the filter block alarm for filter replacement notification

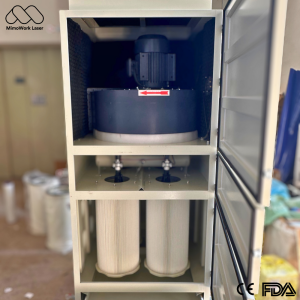

• Four-layer of filters to ensure efficient purification of smoke, odor, and harmful gases

• The efficiency of smoke and dust filtration is as high as 99.7%@0.3 micron

• The laser exhaust filter element can be replaced separately, which reduces the cost of the filter element and makes the maintenance and replacement of the filter element more convenient



Choose the laser cutter fume extractor or laser engraver fume extractor that suit you!

Laser Fume Extractor at a Glance

fume-extractor-800-01

Model name: MW-800FS

Adaptation laser machine:

Flatbed Laser Cutter and Engraver 130

Fiber Laser Welding Machine

Fiber Laser Cleaning Machine

Maximum Wind

800m3/h

Inlet Pressure

9600 PA

Input Power

1.1KW

Filter Specification

A. F5 Medium Efficiency Filter Pad (350mm*400*20); B. F8 Medium Efficiency Pleat Filter (410mm*410*300); C. H13 High-Efficiency Pleat Filter (403*403*50mm); D. Gas Filter (410*410*140mm)

Purification Efficiency

≥99.7%@0.3 micron

Noise

≤65dBA

Machine Size

475mm * 577 * 1080

Machine Weight

75kg

Outlet Diameter

Φ100mm /Φ125mm

fume extractor 1200

Model name: MW-1200FS

Adaptation laser machine: Contour Laser Cutter 160L

Maximum Wind 1200m3/h
Inlet Pressure 9600 PA
Input Power 2.6KW
Filter Specification A. F5 Medium Efficiency Filter Pad (400mm*500*20); B. F8 Medium Efficiency Pleat Filter (500mm*600*300); C. H13 High-Efficiency Pleat Filter (493*593*50mm); D. Gas Filter (500*600*140mm)
Purification Efficiency ≥99.7%@0.3 micron
Noise ≤70dBA
Machine Size 670mm * 770 * 1203
Machine Weight 120kg
Outlet Diameter Φ150mm /Φ200mm





fume-extractor-2000

Model name: MW-2000FS

Adaptation laser machine: Flatbed Laser Cutter 130L, Flatbed Laser Cutter 160L

Maximum Wind 2000m3/h
Inlet Pressure 9600 PA
Input Power 3.9KW
Filter Specification A. F5 Medium Efficiency Filter Pad (400mm*500*20); B. F8 Medium Efficiency Pleat Filter (500mm*600*300); C. H13 High Efficiency Pleat Filter (493*593*50mm); D. Gas Filter (500*600*140mm)
Purification Efficiency ≥99.7%@0.3 micron
Noise ≤73dBA
Machine Size 670mm * 770 * 1203
Machine Weight 135kg
Outlet Diameter Φ200mm / Φ250mm





fume extractor 3000

Model name: MW-3000FS

Adaptation laser machine: Flatbed Laser Cutter 130L, Flatbed Laser Cutter 160L

Maximum Wind 3000m3/h
Inlet Pressure 9600 PA
Input Power 2.2KW
Filter Specification A. F5 Medium Efficiency Filter Pad (400mm*500*20); B. F8 Medium Efficiency Pleat Filter (500mm*600*300); C. H13 High-Efficiency Pleat Filter (493*593*50mm); D. Gas Filter (500*600*140mm)
Purification Efficiency ≥99.7%@0.3 micron
Noise ≤69dBA
Machine Size 704mm * 1130 * 1170
Machine Weight 190kg
Outlet Diameter 2 x Φ125mm / 2 x Φ150mm

Not sure where to start?

- what is a fume extractor?

- how to operate the fume extractor for laser cutting?

- what is the price of laser engraver air filter?

MimoWork fume extractors are not only able to connect with the MimoWork laser system directly, but they are also compatible with any other Fiber and CO2 laser cutting machine brands.

Send us your working table size, material, mechanical ventilation structure, and other requirements, we will recommend one that suits you!
