China Wholesale Laser Cutting Uniform Factories Pricelist - Laser Wire Stripper – MimoWork Laser Detail:

Mechanical Support from Laser Wire Stripper

◼ Small Size

The desktop model with compact and small in size.

◼ Automation Working Flow

One-key operation with the automatic computer-control system, saving time and labor.

◼ High-Speed Stripping

Stripping wire simultaneously by up and down dual laser heads brings high efficiency and convenience for stripping.

Technical Data

Working Area (W * L)	200mm * 50mm
Laser Power	US Synrad 30W RF Metal Laser Tube
Cutting Speed	0-6000mm/s
Positioning Precision	within 0.02mm
Repeat Precision	within 0.02mm
Dimension	600 * 900 * 700mm
Cooling Method	air cooling

Why choose laser to strip wires?

Principle of laser wire stripping

laser-stripping-wire-02

During the laser wire stripping process, the energy of radiation emitted by the laser is absorbed strongly by the insulating material. As the laser penetrates the insulation, it vaporizes the material through to the conductor. However, the conductor strongly reflects the radiation at the CO2 laser wavelength and is therefore unaffected by the laser beam. Because the metallic conductor is essentially a mirror at the wavelength of the laser, the process is effective “self-terminating”, that is the laser vaporizes all of the insulating material down to the conductor and then stops, so no process control is required to prevent damage to the conductor.

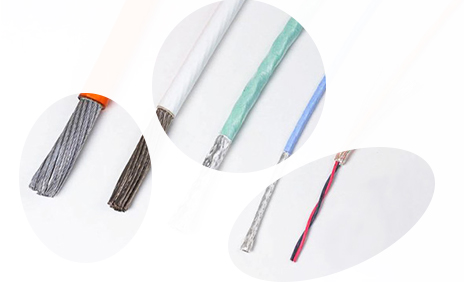

Advantages from laser wire stripping

✔ Clean and thorough stripping for insulation

✔ No damage to the core conductor

Comparatively, conventional wire-stripping tools make physical contact with the conductor, which can damage the wire and slow down processing speed.

✔ High repetition – steady quality

wire-stripper-04

Video Glance of laser wire stripping

Suitable materials

Fluoropolymers (PTFE, ETFE, PFA), PTFE /Teflon®, Silicone, PVC, Kapton®, Mylar®, Kynar®, Fiberglass, ML, Nylon, Polyurethane, Formvar®, Polyester, Polyesterimide, Epoxy, Enameled coatings, DVDF, ETFE /Tefzel®, Milene, Polyethylene, Polyimide, PVDF and other hard, soft or high-temperature material…

Fields of Application

laser-stripping-wire-applications-03

Common applications

(medical electronics, aerospace, consumer electronics and automotive)

Learn more about laser wire stripper price, operation guide
