China Wholesale Laser Cut Technical Textiles Quotes Pricelist - CO2 Laser Cutting Machine for Leather – MimoWork Laser
China Wholesale Laser Cut Technical Textiles Quotes Pricelist - CO2 Laser Cutting Machine for Leather – MimoWork Laser Detail:
▶ Standard laser cutter for leather
Technical Data
|
Working Area (W * L) |
1600mm * 1000mm (62.9” * 39.3 ”) |
|
Software |
Offline Software |
|
Laser Power |
100W/150W/300W |
|
Laser Source |
CO2 Glass Laser Tube or CO2 RF Metal Laser Tube |
|
Mechanical Control System |
Belt Transmission & Step Motor Drive |
|
Working Table |
Conveyor Working Table |
|
Max Speed |
1~400mm/s |
|
Acceleration Speed |
1000~4000mm/s2 |
|
Package Size |
2350mm * 1750mm *1270mm |
|
Weight |
650kg |
* Servo Motor Upgrade Available
Giant Leap in Productivity
◆ High Efficiency
Mimo-Nest Software
<a href="https://www.mimowork.com/mimonest/" title="Auto-nesting and most usage rate” target=”_self”>
Auto-nesting and most usage rate
By selecting all the patterns you want to cut and setting the numbers of each leather piece, the software will nest these pieces with the most usage rate to save cutting time and materials.

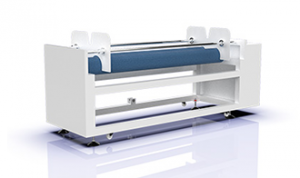

Auto Feeding System
<a href="https://www.mimowork.com/feeding-system/" title="Continuous feeding and cutting” target=”_blank”>
Continuous feeding and cutting
The Auto Feeder combined with the Conveyor Table is the ideal solution for roll materials to realize continuous feeding and cutting. No material distortion with stress-free material feeding.
◆ High Output
Two / Four / Multiple Laser Heads
Multiple simultaneous processing
To expand output and speed up production, MimoWork provides multiple laser heads to be optional to cut the same pattern simultaneously. This doesn’t take extra space or labor.
◆ Flexibility
Mimo-Cut Software
<a href="https://www.mimowork.com/mimocut/" title="Curve cutting for any patterns” target=”_blank”>
Curve cutting for any patterns
Flexible laser cutter can easily cut versatile design patterns and shapes with perfect curve cutting. Besides, fine perforating and cutting can be achieved in a single production.
◆ Safe & Solid Structure
Enclosed Design
Clean & safe laser processing
Enclosed design provides a safe and clean work environment without fume and odor leaks. You can operate the laser machine and monitor the cutting condition through the acrylic window.
▶ Standard laser cutter for leather
Upgrade Options for Leather Laser Cutting
Servo Motor
A servomotor is a closed-loop servomechanism that uses position feedback to control its motion and final position. The input to its control is a signal (either analog or digital) representing the position commanded for the output shaft. The motor is paired with some type of position encoder to provide position and speed feedback. In the simplest case, only the position is measured. The measured position of the output is compared to the command position, the external input to the controller. If the output position differs from that required, an error signal is generated which then causes the motor to rotate in either direction, as needed to bring the output shaft to the appropriate position. As the positions approach, the error signal reduces to zero, and the motor stops. Servo motors ensure higher speed and higher precision of laser cutting and engraving.
Fume Extractor
If you want to stop the bothersome smoke and odor near and wipe out these inside the laser system, the fume extractor is the optimal choice. With the timely absorption and purification of waste gas, dust, and smoke, you can achieve a clean and safe working environment while protecting the environment. Small machine size and replaceable filter elements are greatly convenient for operating.
What are your specific requirements?
Let’s know and offer customized laser solutions for you!
(laser cut leather earrings, laser cut leather jacket, laser cut leather bag… )
Leather Samples for Laser Cutting
Find more videos about our laser cutters at our Video Gallery
Video glance for laser cutting shoes design
- laser cutting
- laser perforating
Laser Machine Recommendation
laser cut leather machine
<a href="https://www.mimowork.com/flatbed-laser-cutting-machine/flatbed-laser-cutter-160-extension-table.html" title="Extended Laser Cutter 160” target=”_blank”>
Extended Laser Cutter 160
• Laser Power: 100W/150W/300W
• Working Area: 1600mm * 1000mm
• Extension Area: 1600mm * 500mm
leather laser engraving machine
<a href="https://www.mimowork.com/galvo-laser-marking-machine/galvo-laser-engraver-for-leather.html" title="Galvo Laser Marking Machine 40” target=”_blank”>
Galvo Laser Marking Machine 40
• Laser Power: 180W/250W/500W
• Working Area: 400mm * 400mm
Learn more about leather laser cutting machine price
