What is the Use of Fume Extractor Machine?
Introduction:
The Reverse Air Pulse Industrial Fume Extractor is a high-efficiency air purification device designed for collecting and treating welding fumes, dust, and harmful gases in industrial environments.
It utilizes reverse air pulse technology, which periodically sends a backward airflow pulse to clean the surface of the filters, maintaining their cleanliness and ensuring efficient operation.
This extends the filter’s lifespan and guarantees consistent and stable filtration performance. The equipment features large airflow capacity, high purification efficiency, and low energy consumption. It is widely used in welding workshops, metal processing plants, electronics manufacturing, and other industrial settings to effectively improve air quality, protect worker health, and comply with environmental and safety regulations.
Table of Content:
Safety Challenges in Laser Cutting and Engraving
Why Is a Fume Extractor Necessary in Laser Cutting and Engraving?
1. Toxic Fumes and Gases
| Material | Released Fumes/Particles | Hazards |
|---|---|---|
| Wood | Tar, carbon monoxide | Respiratory irritation, flammable |
| Acrylic | Methyl methacrylate | Strong odor, harmful with prolonged exposure |
| PVC | Chlorine gas, hydrogen chloride | Highly toxic, corrosive |
| Leather | Chromium particles, organic acids | Allergenic, potentially carcinogenic |
2. Particulate Pollution
Fine particles (PM2.5 and smaller) remain suspended in air
Prolonged exposure can lead to asthma, bronchitis, or chronic respiratory disease.

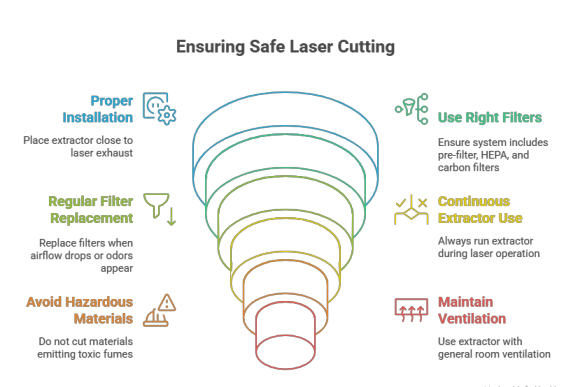

Safety Tips for Using a Fume Extractor
Proper Installation
Place the extractor close to the laser exhaust. Use short, sealed ducting.
Use the Right Filters
Ensure the system includes a pre-filter, HEPA filter, and activated carbon layer.
Replace Filters Regularly
Follow manufacturer guidelines; replace filters when airflow drops or odors appear.
Never Disable the Extractor
Always run the extractor while the laser is operating.
Avoid Hazardous Materials
Do not cut PVC, PU foam, or other materials that emit corrosive or toxic fumes.
Maintain Good Ventilation
Use the extractor along with general room ventilation.
Train All Operators
Ensure users know how to operate the extractor and replace filters safely.
Keep a Fire Extinguisher Nearby
Have a Class ABC fire extinguisher accessible at all times.
Working Principle of Reverse Air Pulse Technology
The Reverse Air Pulse Industrial Fume Extractor utilizes advanced reverse airflow pulse technology, which periodically releases compressed air pulses in the opposite direction to clean the surface of the filters.
This process prevents filter clogging, maintains airflow efficiency, and ensures effective fume removal. Continuous automatic cleaning keeps the unit operating at peak performance over long periods.
This technology is particularly well-suited for the fine particles and sticky fumes generated by laser processing, helping to extend the filter's service life while reducing maintenance needs.
Enhancing Safety Through Effective Fume Extraction
The extractor efficiently removes hazardous fumes generated during laser cutting and engraving, significantly reducing the concentration of harmful substances in the air and protecting workers' respiratory health. By removing smoke, it also improves visibility in the workspace, enhancing operational safety.
Furthermore, the system helps eliminate the buildup of flammable gases, reducing the risk of fire and explosion. Cleaned air discharged from the unit complies with environmental standards, helping businesses avoid pollution penalties and maintain regulatory compliance.
Key Features for Laser Cutting and Engraving
1. High Airflow Capacity
Powerful fans ensure rapid capture and removal of large volumes of smoke and dust.
2. Multi-Stage Filtration System
A combination of filters effectively captures particles and chemical vapors of various sizes and compositions.
3. Automatic Reverse Pulse Cleaning
Keeps filters clean for consistent performance without frequent manual intervention.
4. Low Noise Operation
Engineered for quiet performance to support a more comfortable and productive work environment.
5. Modular Design
Easy to install, maintain, and scale based on the size and needs of different laser processing setups.

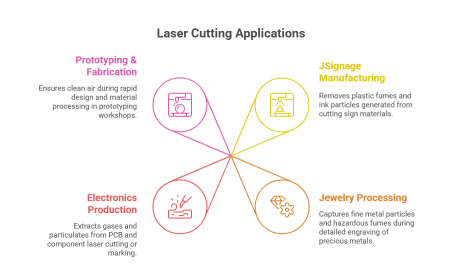

Applications in Laser Cutting and Engraving
The Reverse Air Pulse Fume Extractor is widely used in the following laser-based industries:
Signage Manufacturing: Removes plastic fumes and ink particles generated from cutting sign materials.
Jewelry Processing: Captures fine metal particles and hazardous fumes during detailed engraving of precious metals.
Electronics Production: Extracts gases and particulates from PCB and component laser cutting or marking.
Prototyping & Fabrication: Ensures clean air during rapid design and material processing in prototyping workshops.
Maintenance and Operational Guidelines
Regular Filter Inspections: While the unit has automatic cleaning, manual inspection and timely replacement of worn filters are necessary.
Keep the Unit Clean: Periodically clean the exterior and internal components to avoid dust buildup and maintain cooling efficiency.
Monitor Fan and Motor Function: Ensure fans run smoothly and quietly, and address any unusual noise or vibration immediately.
Check the Pulse Cleaning System: Verify that the air supply is stable and pulse valves are functioning properly to maintain effective cleaning
Train Operators: Ensure personnel are trained in operating procedures and safety measures, and can respond to issues promptly.
Adjust Operation Time Based on Workload: Set extractor operation frequency according to the intensity of laser processing to balance energy use and air quality.
