Raster VS Vector Laser Engraving Wood
Take Wood Engraving for Example:
Wood has always been an essential material in the world of craftsmanship, and its appeal never seems to fade. One of the most remarkable advancements in woodworking technology is laser engraving on wood. This cutting-edge technique has revolutionized the way we create and decorate wooden objects. In this article, we will explore the numerous benefits of laser engraving on wood, its applications, the wood selection process, the engraving process itself, tips for achieving precise engravings, machine maintenance, inspiring examples, and resources for further learning.
The Benefits of Laser Engraving on Wood
▶ Unmatched Precision and Intricate Designs
Laser engraving on wood utilizes high-powered laser beams with pinpoint accuracy, resulting in unmatched precision and the ability to create intricate and detailed designs.
▶ Non-Contact Process for Delicate Wood Surfaces
One significant advantage of laser engraving is its non-contact nature. Unlike traditional methods that involve physical contact with the wood surface, the laser beam hovers above the material, reducing the risk of damage to delicate wood surfaces.
▶ Versatility for Customization
Laser engraving technology provides unmatched versatility, allowing for the customization of a wide range of wooden products.
▶ Faster Production Times and Reduced Labor Costs
The speed and efficiency of laser engraving significantly contribute to faster production times and reduced labor costs. Traditional engraving techniques often require a skilled artisan to spend considerable time manually carving intricate designs.
Raster VS Vector Laser Engraving
Laser engraving on wood is a sophisticated and precise technique that has revolutionized the world of woodworking and craftsmanship. This process involves the use of a high-powered laser beam to selectively remove material from the wood's surface, resulting in a permanent and intricately detailed design. The laser engraving process utilizes raster and vector files to control the movement and intensity of the laser beam, providing flexibility and precision in design execution.
Here, we delve deeper into the key aspects of the process:
1. Laser Beam Interaction with Wood Surface:
The laser beam interacts with the wood surface in a highly controlled manner. The intense heat generated by the laser vaporizes or burns the wood material, leaving behind a precisely engraved pattern. The depth of the engraving is determined by the intensity of the laser and the number of passes over the same area. The non-contact nature of laser engraving ensures that delicate wooden surfaces remain undamaged during the process, preserving the natural beauty of the wood.

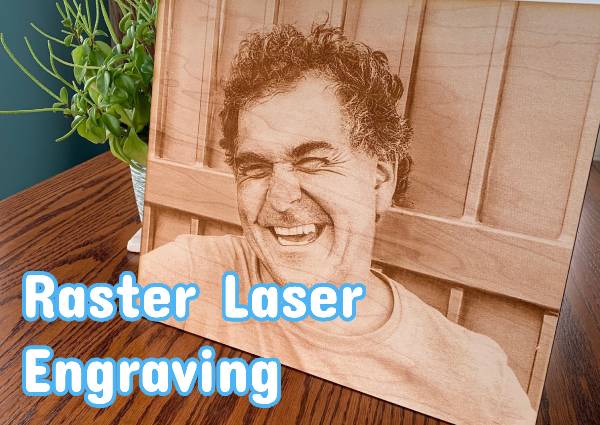

2. Raster Engraving:
Raster engraving is one of the two primary engraving techniques used in laser engraving on wood. This method creates grayscale images by varying the laser's intensity while rapidly scanning back and forth over the wood surface.
CO2 laser engraving is a process that uses a high-powered CO2 laser beam to selectively remove material from the surface of wood. It's commonly used for creating detailed designs, text, and images on wooden surfaces.
▪ Raster Images:
CO2 lasers are excellent for engraving raster images, which are composed of pixels (dots) and are commonly used for photographs and complex artwork.
▪ Design Software:
You'll need design software like Adobe Photoshop, CorelDRAW, or specialized laser engraving software to prepare and optimize your raster image for engraving.
▪ Laser Settings:
Configure the laser settings, including power, speed, and frequency, based on the type of wood and the desired engraving depth. These settings determine how much material the laser removes and at what speed.
▪ DPI (Dots Per Inch):
Choose an appropriate DPI setting to control the level of detail in your engraving. Higher DPI settings result in finer detail but may require more time to engrave.

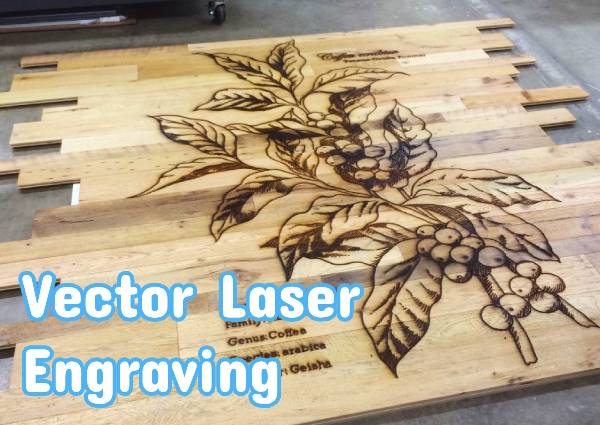

3. Vector Engraving:
The second technique, vector engraving, follows precise paths to create sharp outlines and shapes on the wood surface. Unlike raster engraving, vector engraving uses continuous and steady laser power to cut through the wood, resulting in clean and well-defined lines.

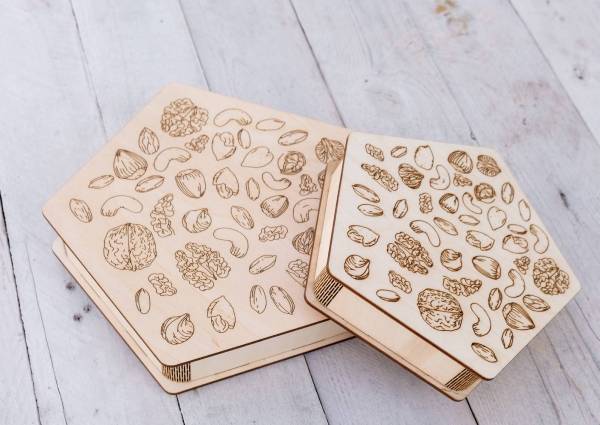

Vector laser engraving is a highly precise and versatile method for engraving designs, patterns, and text on wood. Unlike raster engraving, which uses pixels to create images, vector engraving relies on lines and paths to create crisp, clean, and sharp engravings.
▪ Vector Graphics: Vector engraving requires vector graphics, which use lines, curves, and paths defined by mathematical equations to create designs. Common vector file formats include SVG, AI, and DXF.
▪ Design Software: Use graphic design software such as Adobe Illustrator, CorelDRAW, or similar programs to create or import vector graphics for engraving.
▪ Laser Settings: Configure laser parameters, including power, speed, and frequency, based on the wood type and desired engraving depth. These settings control the laser's intensity and speed during engraving.
▪ Line Width: Adjust the line width in your vector graphics to determine the thickness of the engraved lines.
4. Preparing for the Engraving Process:
Before commencing the actual engraving, it is essential to prepare the design files properly. High-resolution and vector-based files are recommended to ensure the best possible results. Additionally, selecting the appropriate settings for the laser, including the power, speed, and focal point, is crucial for achieving the desired outcome.
5. Machine Calibration and Alignment:
Proper machine calibration and alignment play a critical role in ensuring accurate and consistent engraving results. Regular maintenance and calibration of the laser engraving machine, including checking the mirrors and lenses for cleanliness and alignment, are essential to maintain optimal performance.
Video Display | Laser Engraving on Wood
Raster Engraving Laser Cutter: Engraving Photo on Wood
Vector Art for Laser Engraving: DIY A Wood Iron Man
Any questions about vector laser engraving and raster laser engraving
Recommended Wood Laser Cutter
No ideas about how to maintain and use the wood laser cutting machine?
Don’t worry! We will offer you professional and detailed laser guide and training after you purchase the laser machine.
Tips for Achieving Precise and Detailed Laser Engravings
# High-Resolution Vector Designs
# Proper Laser Beam Focusing
Perfect laser cutting and engraving result means appropriate CO2 laser machine focal length. How to find focus of laser lens? How to find focal length for laser lens? This video answers you with specific operation steps of adjust co2 laser lens to find the right focal length with a CO2 laser engraver machine. The focus lens co2 laser concentrates the laser beam on the focus point which is the thinnest spot and has a powerful energy. Adjusting the focal length to the appropriate height has a significant impact on the quality and precision of laser cutting or engraving. Some tips and suggestions are mentioned in the video for you, hoping the video can help you.
# Optimized Speed and Power Settings
# Regular Maintenance of Optics
# Test Engraving on Sample Materials
# Consider Wood Grain and Texture
# Cooling and Ventilation
More Sample of Wood Laser Engraving
Interior Decor:
Laser engraved basswood finds its place in exquisite interior decorations, including intricately designed wall panels, decorative screens, and ornate picture frames.

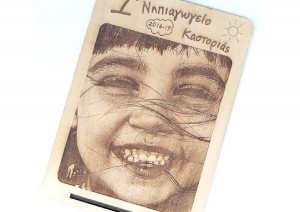

Photo Artwork:
CO2 laser engraving is a versatile and precise method for adding detailed raster photos to wood, making it a popular choice for personalized items, art, signage, and more. With the right equipment, software, and attention to detail, you can achieve stunning results on wooden surfaces.
Artistic Embellishments:
Artists can incorporate laser-engraved basswood elements into paintings, sculptures, and mixed-media artworks, enhancing texture and depth.
Educational Aids:
Laser engraving on basswood contributes to educational models, architectural prototypes, and scientific projects, enhancing engagement and interactivity.
Laser Engraving Wood | Vector & Raster Art
In conclusion, laser engraving on wood is a game-changer for woodworking and craftsmanship. Its precision, versatility, and ease of use have revolutionized the creation of personalized wooden items. Embrace this technology, unleash your creativity, and turn simple wood into timeless works of art that captivate for generations.
