Rotary Attachment for Laser Engraver: How to Engrave Cups, Bottles, and Cylinders
Tired of flat-only engraving? Our rotary guide helps you master curves—thermos cups, wine bottles, cylinders. Check our catalog for more.
What Exactly Is a Rotary Attachment for Laser Engraver?
A laser rotary attachment is basically a must-have accessory if you want to move beyond flat materials. Unlike regular flat engraving, this laser engraver rotary attachment holds cylindrical items securely and rotates them steadily. That gives you precise 360° engraving all around the object.
The great thing is, most rotary attachments for laser work with popular CO2 lasers and marking machines. Just connect it, tweak a few settings, and your laser engraver with rotary attachment can handle tumblers, bottles, and more. Once you've got that rotary attachment for laser set up, you're no longer limited to flat surfaces.
Why Do You Really Need a Rotary Attachment for Engraving Cups and Bottles?
Let's be honest---flat engraving just doesn't cut it for round stuff.
That's where a laser rotary attachment changes everything.
Flat engraving can't do full 360° patterns. You can't wrap text or logos around a cup without a laser engraver rotary attachment.
Curved surfaces mess with focus. Without a rotary attachment for laser, the laser focal length changes on curved surfaces. That means uneven depth, blurry lines, and a lot of wasted products.
Manually rotating is a headache. Trying to line things up by hand? Good luck. You'll get pattern shifts and visible seams. A laser engraver with rotary attachment solves that completely.
Steady rotation gives pro results. A laser rotary attachment keeps the cup or bottle turning at a constant speed, so the laser stays focused. That gives you even depth and smooth lines.
Works with many cup and bottle sizes. Tumblers, glass cups, wine bottles, soda bottles---different diameters, no problem. No need to modify your machine when you have a rotary attachment for laser.
Protects the surface. You can adjust the clamping pressure on your laser engraver rotary attachment, so fragile materials don't crack or get scratched.
Main Types of Rotary Attachments for Cup and Bottle Engraving
There are two main types you'll see when shopping for a laser rotary attachment: chuck type and roller type.
Also, ring fixtures and circular fixtures are common for holding things in place. But today I'll focus on chuck and roller.

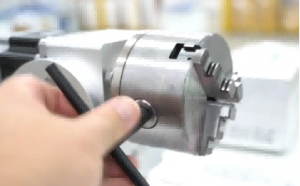

Chunk Type:If you're working with a chuck, you're probably looking at either a 3-jaw or 4-jaw design. Here's the thing---this kind of laser engraver rotary attachment holds your workpiece tight, so you get way less vibration and fewer errors. You've got options like soft jaws or dual-step jaws, and it supports both inner and outer installation. That means even irregular or polygonal parts are no problem, and the chuck won't damage them either. It can handle parts up to 100mm in diameter, with a repetitive positioning accuracy of ±0.01mm, plus full 360° rotation. So if you're doing high-precision commercial work, this chuck is honestly a solid choice.

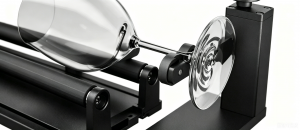

Roller Type :This rotary attachment for laser lets you just place the item on the rollers, and it rotates. Faster loading, great for daily batch jobs. Many people prefer this laser engraver with rotary attachment setup for high-volume work.
| Item | Chuck Type | Roller Type |
|---|---|---|
| Clamping method | Fixed and clamped by chuck | Supported and rotated by rollers |
| Processing precision | Better for fine engraving | Good for efficiency and mass production> |
| Installation & speed | Slower positioning but more stable | Faster workpiece replacement |
| Price & practicality | Good for daily order processing | Good for daily order processing |
How to Correctly Install and Connect Your Rotary Attachment for Cup and Bottle Engraving?
Check everything first. Make sure the laser engraver rotary attachment and cables are fine---no damage, no loose connections. Clean your workbench so the rotary attachment for laser sits steady. Leave enough vertical space so the workpiece doesn't hit the laser head.
Mount it properly. Place the laser rotary attachment at the center of your workbench. Keep its axis parallel to the laser beam. Adjust height so the focal length matches your laser engraver with rotary attachment.
Software setup. Switch your machine from flat to rotary mode. Turn on the rotary function and calibrate the rotation ratio. Most laser engraver rotary attachment setups require this step. Adjust speed based on your material and size so the laser scanning and rotation are in sync.
Test before you run. Do a dry run with no material. Watch for jitter or stalling. A well-calibrated rotary attachment for laser should run smooth.
Step-by-Step Operation of Rotary Attachment for Laser Engraver on Cups and Wine Bottles
Want to see the full process? Check out our YouTube tutorials for practical laser engraving. Using a laser engraver with rotary attachment is easier than you think once you see it in action.
Cup & Bottle Parameters for Your Rotary Attachment for Laser
These settings work well with most laser rotary attachment systems.
But always do a small test first.
Stainless steel tumblers & water cups
Use medium power and moderate speed. That gives you an even black-gray oxidation effect. Clean off oil stains first---it really helps with coloring uniformity. A laser engraver rotary attachment handles metal surfaces just fine.
Glass wine bottles & beverage bottles
Low power and multiple scans are your friend. High temps can crack glass. Go slow to get that premium frosted white finish. Don't try to deep engrave in one pass. Your rotary attachment for laser needs patience with glass.
Ceramic cups & porcelain cylinders
Stick with moderate settings. You want to avoid glaze peeling or uneven spots. Clear patterns and intact glaze? That's the goal. A laser engraver with rotary attachment gives you much better control on ceramic.
Wooden cups & wood cylinders
High speed, low power. Prevents burning at the edges or yellowing. You'll get a clean, natural wood carving look. This is where a laser rotary attachment really shines.
Plastic & acrylic cylinders
Ultra-low power, high speed. Otherwise, the material melts or leaves burrs. Done right, you'll have neat, delicate engraving.
Who Should Get a Rotary Attachment for Laser Engraver?
Two main groups: people who already own a laser engraver but don't have a laser rotary attachment yet, and new users who need 360° cylindrical engraving. A rotary attachment for laser turns your regular machine into a laser engraver with rotary attachment, so you can do cups and bottles without issues. Perfect for gift shops, custom product sellers, and handmade business owners. Honestly, once you try a laser engraver rotary attachment, you won't go back to manual rotation.
Skills to Improve Cup and Bottle Engraving Effects with Rotary Attachment for Laser Engraver
Make sure your laser rotary attachment is level. Otherwise, engraving gets uneven.
Choose the right clamping method on your laser engraver rotary attachment for the job.
Adjust focus for curved surfaces---don't assume it's the same as flat material.
Tweak speed and power on your rotary attachment for laser to avoid visible seams where the pattern starts and ends.
Use anti-slip pads to keep the workpiece from moving. That gives you clean, consistent results. A well-set laser engraver with rotary attachment makes all these steps easier.
Which Models Work With Our Rotary Attachment for Laser Engraver?
At MimoWork, we currently offer only the Chuck type. It's compatible with our flatbed laser engravers, metal fiber laser engravers, Galvo laser engravers, and laser marking machines. This standard rotary attachment for laser handles cups, bottles, and other round items well, with stable performance. Whether you need a laser engraver with rotary attachment setup for small batches or daily production, our roller type gets the job done.
A metal fiber laser engraver plus a rotary axis is ideal for round metal items: steel pipes, aluminum tubes, brass rings, and cylindrical hardware. Perfect for 360° logos, serial numbers, or barcodes on curved surfaces. Great for custom parts, automotive components, industrial marking, and personalized metal gifts.
A non-metal flatbed laser engraver plus a rotary axis is perfect for cylindrical items: wooden mugs, acrylic tubes, leather bracelets, rubber rollers, plastic bottles, and fabric cylinders. Great for curved-surface logos, patterns, or text. Ideal for custom gifts, decor, and small-batch industrial marking.
A Galvo laser with a rotary axis is a game changer for round non-metal items. Think 360° logos on wine bottles, serial numbers on pipes and seals, QR codes for traceability, or brand engravings on tea tins and candy jars. Fast, precise, and perfect for cylindrical projects.
Find Out in 3 Minutes: Which Rotary Attachment Best Fits Your Workpiece?
FAQ
A: It lets you do 360° rotating engraving on cylindrical items like cups and bottles. So you get seamless curved surface marking. Any laser engraver rotary attachment does exactly that.
A: High-precision custom engraving on everyday cylindrical items---tumblers, wine bottles, that kind of thing. Good profit, steady demand. A laser engraver with rotary attachment opens up these opportunities.
A: Go with three-jaw if you need high precision or irregular shapes. Pick roller type if you want fast clamping and do daily batch engraving of regular cylinders. Both are solid laser rotary attachment options.
A: Keep it clean---dust and debris are bad news. Tighten loose screws when you notice them. Lubricate moving parts lightly. Don't put heavy pressure on it, and keep it out of damp areas. Store your rotary attachment for laser properly when not in use. Good maintenance keeps your laser engraver rotary attachment running for years.
